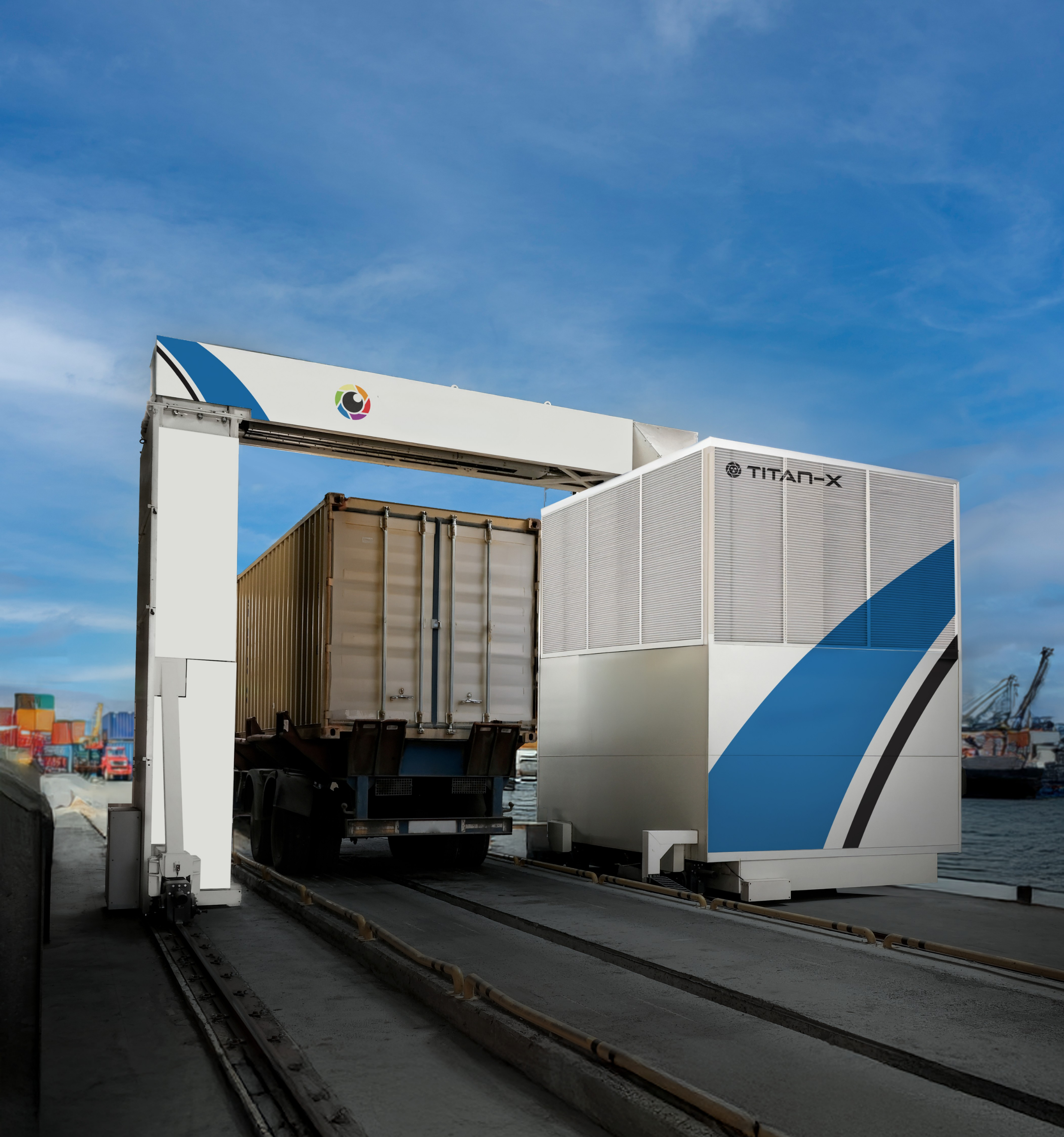

TITANSON — Gantry X-Ray System

System Overview

Versatile and user-friendly, the TITANSON enables rapid screening of vehicles and cargo using advanced X-Ray transmission technology. Dual Energy LINAC delivers detailed, sharp imaging that surpasses conventional X-Ray in detecting concealed threats and contraband.

Purpose-built for permanent border, port and checkpoint installations where maximum throughput and continuous availability are non-negotiable.

CE Certified

ISO 9001:2015

Dual Energy LINAC

AI Image Processing

UFF 2.0 Format

Technical Specifications

Engineering Data

Download Datasheet (PDF)

Parameter

Specification

X-Ray Source

Dual Energy LINACKey Tech

Scanning Size

4.7m (H) × 2.6m (W) × 20m (L)Extendable upon request

Scanning Rate — Gantry

20 trucks per hour

Scanning Rate — Portal

100 trucks per hourMax Throughput

Steel Penetration

High Penetration

Wire Resolution

High Resolution

Material Discrimination

Organic / Inorganic / Mixed

Start-up Time

≤ 15 minutes

Parameter

Specification

Processing Method

AI Driven + Conventional Methods

Zoom Capability

Up to ×64

Image Comparison

Up to 4 images simultaneously

Colour Schemes

Wide pseudo-colour palette

Histogram

Automatic histogram equalisation

Data Format

UFF 2.0

Cross-System Sharing

Data access between networked TITAN units

Smart Detection

Advanced threat / contraband detection + system health monitoring

Parameter

Specification

Operating Temperature

−30°C to +50°CExtended range available on request

Humidity

Up to 95% RH (non-condensing)Extended range available on request

Operation Mode

Gantry Mode (vehicle stationary) + Portal Mode (drive-through)

Installation

Fixed permanent installation — foundation required

Parameter

Specification

X-Ray Dose Rate

≤ 0.5 μSv/hrMeasured outside exclusion zone

Power Consumption

≤ 40 kVA

Radiation Safety

Compliant with Ionising Radiation Directive 2013/59/Euratom

Machine Safety

CE — Machine Safety Directive 2006/42/EC

Quality Standard

ISO 9001:2015

System Operation

How TITANSON Works

From vehicle entry to cleared or flagged — a complete scan cycle in under three minutes.

Step 01

Vehicle Positions in the Scan Lane

The truck or container vehicle drives into the gantry lane and halts at the scan position. The operator initiates the scan sequence from the control workstation. Total positioning takes under 60 seconds.

In Portal Mode, vehicles drive through at operational speed — no stopping required — delivering up to 100 scans per hour with zero disruption to port or checkpoint flow.

4.7m scan height 20m scan length Portal mode: no stop

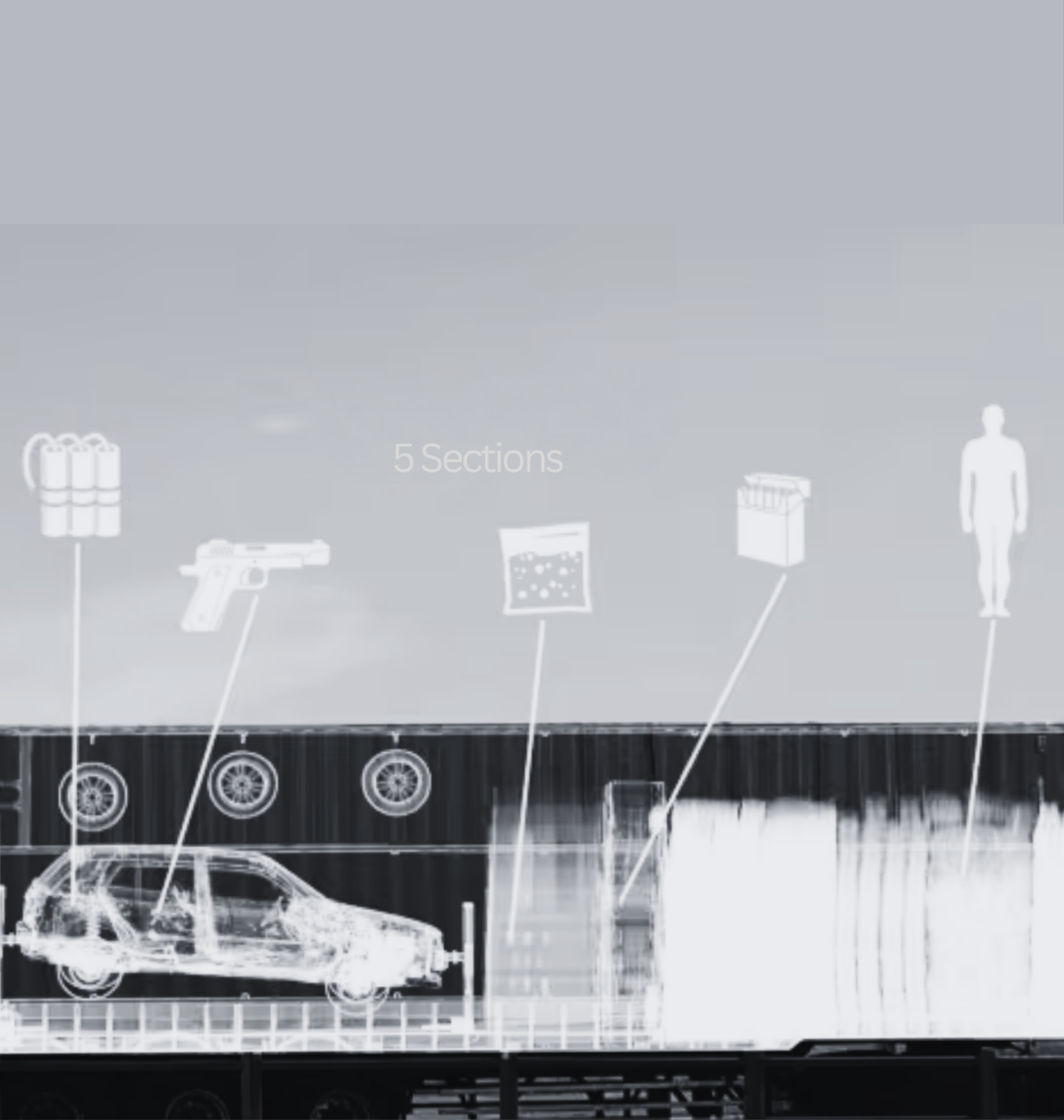

Container port terminal with truck — scan lane positioning

Gantry scan lane — full-length container positioning, Gantry & Portal modes

Step 02

Dual Energy LINAC Beam Penetrates the Vehicle

The gantry traverses the full vehicle length emitting a Dual Energy LINAC X-ray beam. Two simultaneous energy levels measure attenuation across the entire scan width — the difference reveals material composition, not just density.

Dense metals, organic materials, liquids and composites all produce distinct attenuation signatures. Steel penetration and wire resolution are both rated High — capable of resolving a cigarette pack inside a fully-loaded 40-foot container.

Dual Energy LINAC High steel penetration High wire resolution ≤0.5 μSv/hr dose

X-ray technology — beam penetration through cargo

Dual Energy LINAC — two simultaneous energy levels resolve material composition

Step 03

AI Analysis Flags and Prioritises Threats

Scan data is processed simultaneously by AI-driven and conventional image processing methods. A full-colour dual-energy image is generated with automatic histogram equalisation and up to ×64 zoom capability.

Threat flags are ranked and presented to the operator for final decision. Up to four images can be compared side by side. All data is stored in UFF 2.0 format and shared across networked TITANSON installations for cross-site intelligence.

AI threat detection ×64 zoom 4-image comparison UFF 2.0 / network share

Operator workstation — security monitoring with AI detection screens

Operator workstation — AI flags ranked in real time for operator review

Deployment

Where TITANSON Operates

Engineered for permanent, high-volume installations where continuous 24/7 operation and maximum detection capability must coexist.

Land Border Crossings

Permanent fixed gantry installation scanning all inbound and outbound freight without disrupting commercial traffic flow.

Both modes availableANPR integration

Commercial Port Terminals

Container and vehicle inspection at volume. Portal mode delivers 100 scans/hr without halting traffic. Integrates with port management and customs systems.

Portal mode preferredCustoms DB link

Freight Depots & Customs

Inland customs clearance centres where all inbound cargo must pass inspection before onward distribution. Continuous shift operation.

24/7 capableUFF 2.0 data logging

International Checkpoints

Fixed permanent checkpoints at strategic international border corridors — dual-mode flexibility as traffic composition and volumes change over time.

Cross-site data sharingMulti-system networking

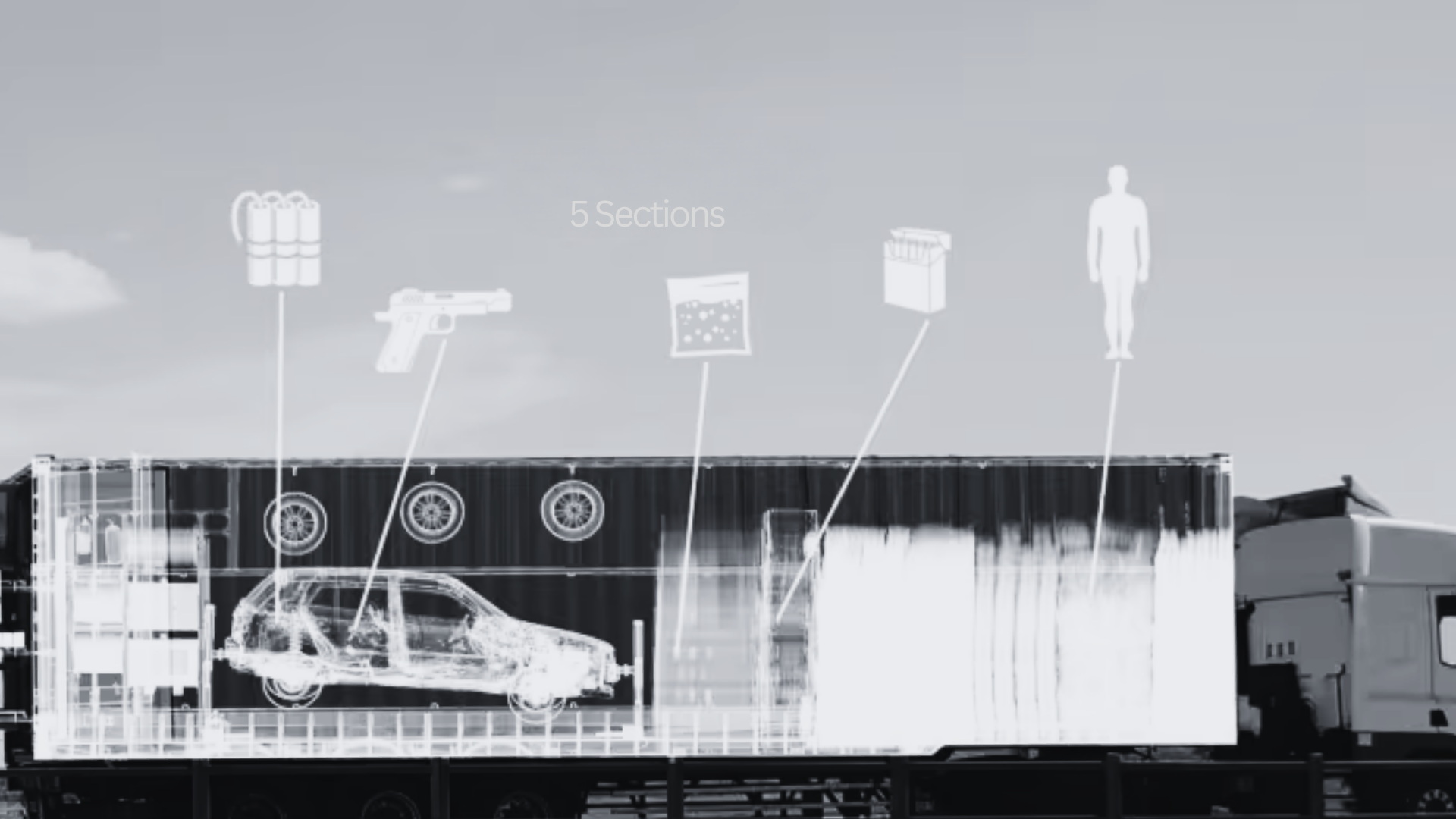

TITAN - X
